-size: 20px;">HOWO-NX 6X4 10T Dump Truck CRANE (FOLDING ARM), LHD

Model：ZZ3257V464JB1

Made Year: Brand New, 2025

Cabin: H77L, driver’s air seat, single sleeper, with air conditioner

Engine: WP12S400E201, 400hp, Euro II

Gearbox: HW19710, manual, 10 F & 2 R

Front axle:VGD95 9500kg, drum brake

Rear axle: MCP16ZG  2*16000kg, drum brake

Tires: 12.00R20, 11 pcs (including one spare tire)

Fuel TANK: 300L

Body size: 5200*2300*1500mm, bottom 8mm, side 6mm, middle lifting hydraulic system

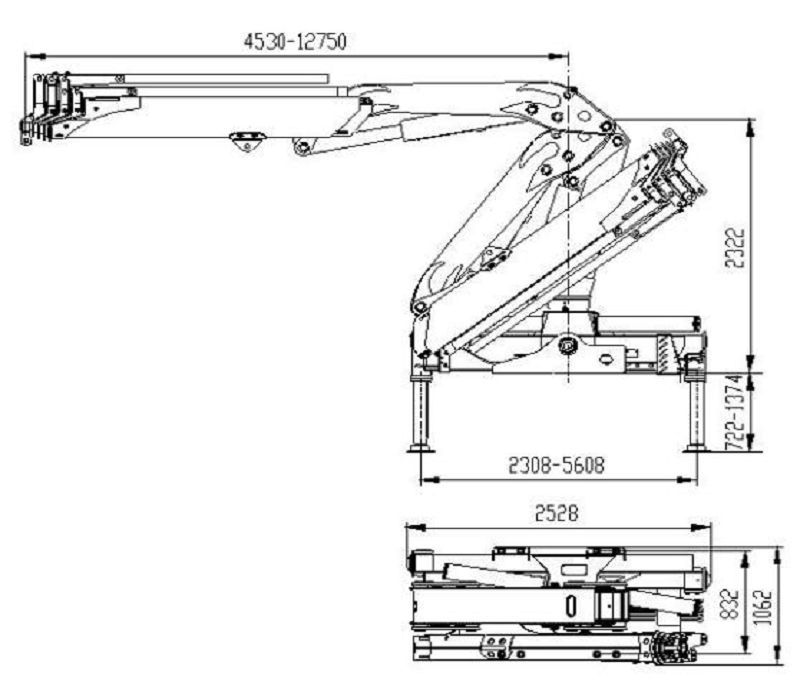

10T TRUCK MOUNTED CRANE

Model: SQZ200

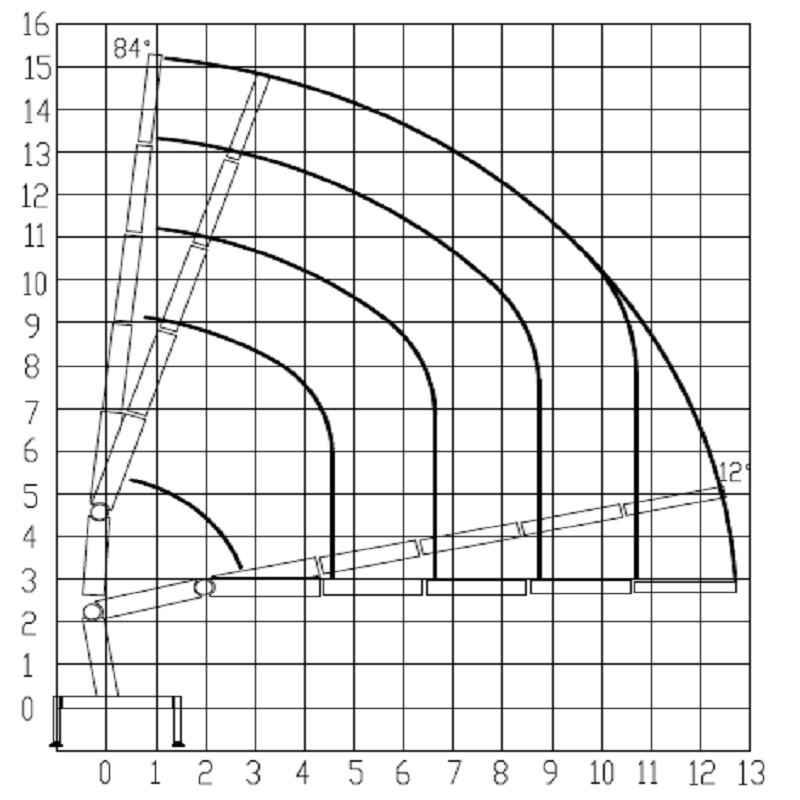

Maximum lifting torque: 210kN.m

Maximum lifting height: 15.2m

Maximum working range: 12.75m

Range of amplitude variation：0～84°

Rotation range: 410 °

Maximum lifting weight: 10000Kg

Outrigger range：5608mm

Product weight:3100kg

Overall Dimension: 10300*2550*3600mm

Color: Basic color for free (white, red, blue, orange, gray) Special color charge 500 USD
