ZZ3317N3567W

8X4

371HP

 CHASSIS MAIN SPECIFICATIONS

Chassis Model

ZZ3317N3567W

Steering

ZF8118, right hand drive

Engine

Brand  SINOTRUK

Gross Vehicle Weight

31000KG

WD615.47     EUROⅡ

Dead Weight

14500KG

Maximum Output

371HP

Tyres

12.00R20

Rated engine power

273/2200

Cab

HOWO70 (no bed)

Air-condition

Transmission

HW19710 (10 forward, 2 reverse)

Max.Driving Speed

78 km/h

Front Axle

HF9

Rear Axle

HC16

Max.loading:9000kg

Max.loading:16000kg

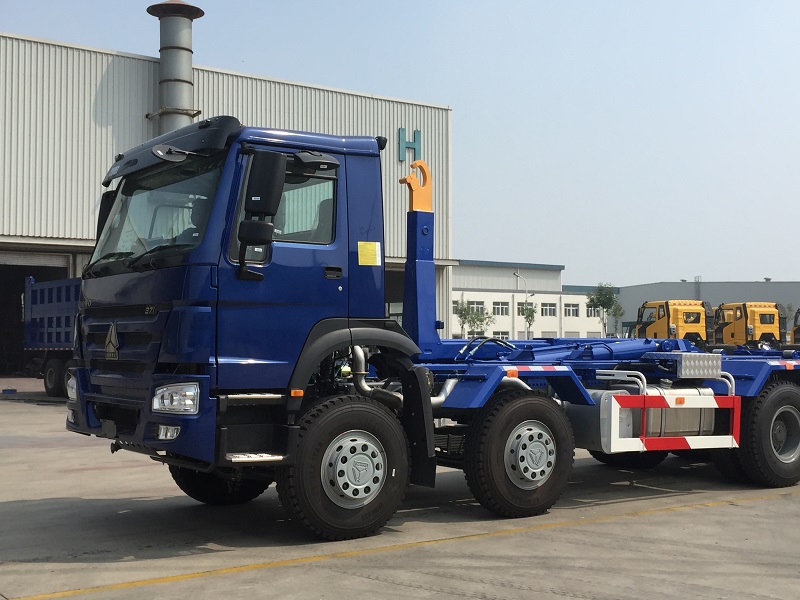

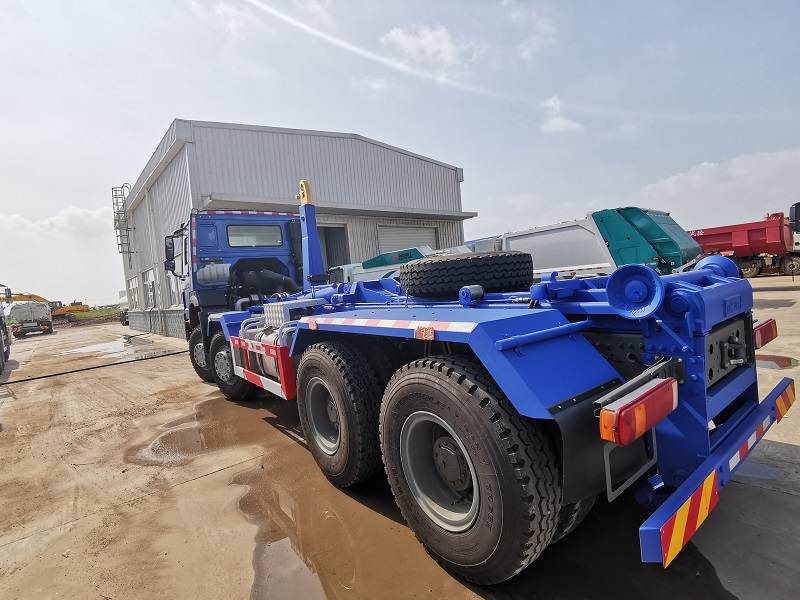

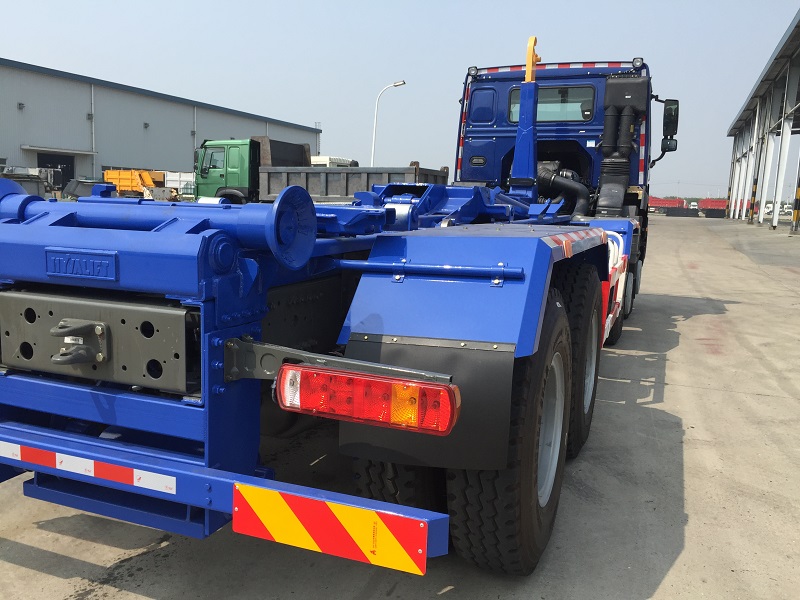

HOOK （HYVA 26-62-S)  MAIN SPECIFICATION

Max. Lifting Force (Ton)

26

Length Range of Garbage box(mm)

4900-7300

Height of Hook(mm)

1450

Hydraulic System Pressure(Mpa）

30

Lifting Up Time(s)

≤52

Locking Device of Garbage Box

External Hydraulic Locking

Lifting Down Time(s)

≤65

hydraulic oil TANK

100L

Discharging Time(s)

≤57

Hook armHorizontal moving distance(mm)

1400

Discharging Angle°

50

Body Installation height(mm)

280
