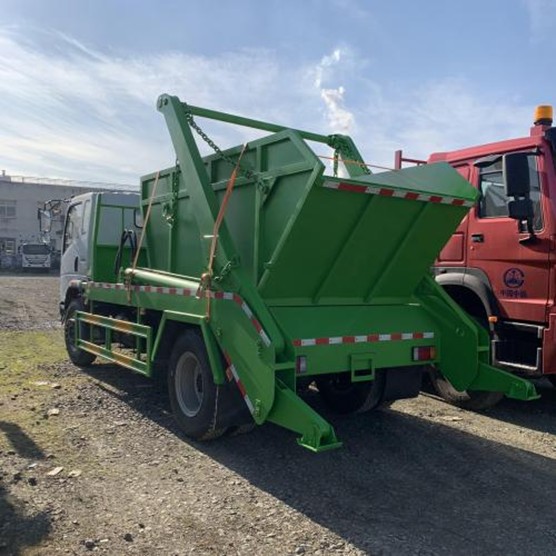

HOWO 4X2 SWING ARM GARBAGE TRUCK RHD

Model: ZZ1167G4515C1R

Made Year: Brand New, 2025

Cabin: 2080mm, 3 seats, single sleeper ,with air conditioner

Engine: YC4E140-33 ,140hp, Euro 3

Gearbox: WLY6TS55, manual, 6 F & 1 R with PTO

Front axle: 3200kg, drum brake

Rear axle: 8000kg, drum brake

Tires: 8.25R20, 7 pcs (including one spare tire)

Fuel tank: 220L：220L

Body:

Swing arm:6T

Bottom plate: carbon steel plate, thickness: 4mm

Swing arm mechanism: manganese plate, thickness: 6mm

ZHONGMEI multi way valve, HENGLI oil cylinder, with manual throttle, main arm with balance valve;

Unloading method: Hanging chain unloading. The swing pipe is driven by a multi way valve to rotate around the axis, which can lift the hopper and tilt it;

Box capacity: 10 m3

Overall dimension for reference: 8200*2550*3450mm

Color: Basic color for free (white,yellow) Special color charge 300 USD
