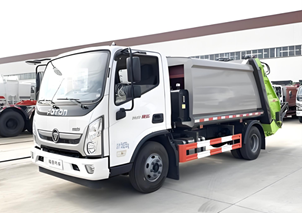

FOTON AUMARK E COMPRESS GARBAGE TRUCK

Steering RHD

GVW 6T

Load capacity 3-4T

Emission EURO II

Cabin Single row

Wheelbase 3360

Driving type 4X2

Vehicle width 1880

Model BJ1065VDJDA-F1

Overall dimension：5965X1935X2225mm

Engine YC493ZLQV1

Engine manufacture YUCHAI engine

Fuel Diesel

Power 80

Horsepower 102

Transmission 5G32

Transmission manufacture WLY

Front axle load 2.4T

Rear axle load 4.5T

Rear axle speed ratio 5.375

Brake control system ABS

Tires 7.00R16

Fuel tank volume 120L

Basic configuration  Front and rear without stabilizer bar, wheelbase: 3360, Bangladesh, YC493, Euro III, 80kW(108Ps), plastic fuel tank, 120L, WLY5G32, φ265mm diaphragm spring clutch, air brake, constant pressure exhaust brake, aluminum alloy air storage cylinder, front and rear drum brake, air brake, ABS(4S4M), 2.4t front axle, 4.5t, NPR single-stage reduction driving axle, welding, driving axle speed ratio: 5.375, 3 front leaf springs, 8+6 rear leaf springs, 810/750, height 180, width 65, thickness 4.5 frame, steel rear protection, fog light, door open warning, main driver seat belt not attached alarm, internal rearview mirror, single overhead file cabinet, double sun visor, no front down view mirror, manual adjustment, no heating external rearview mirror, width 1880, Single-row cab, no hood, no deflector, side turning signal (door, No turning lights), electric heating, no cruise, no reverse radar, no reverse buzzer, 12V battery, no cargo box accessories, YC493ZLQV1, no automatic headlights, 1590/1485, no side protection, steel rims, 106x106x6, L7.00R16-12PR-LT, no cargo box, ordinary body, manual doors and windows lifting, no central control lock + mechanical door lock + two tablets

Air condition Electric air condition

Tires number Double rear tires 6+1

Body structure

Body volume 3m³

Body shape Curved body

Body material and thickness Material: Q345 manganese steel Thickness: 4mm

Shovel material and thickness Material: Q345 manganese steel Thickness: 3mm

Filler material and volume Material: Q345 manganese steel Volume: 0.8m³

Rear sewage tank Material: Q235 carbon steel Thickness: 3mm Volume: 170L

Front sewage tank Material: Q235 carbon steel Thickness: 3mm Volume: 160L

Ladder One side of the body, Material: Q235 carbon steel

Hydraulic system

Push shovel oil cylinder 1 pcs

Sweep plate oil cylinder 2 pcs

Slide plate oil cylinder 2 pcs

Rear flip over oil cylinder 2 pcs

Lifting oil cylinder 2 pcs

Hydraulic oil tank 90L 1 pcs

Hydraulic tube Black rubber wire hose and steel tube

Hydraulic oil pump Wanye hydraulics oil pump

PTO Jiashan PTO

Multi-tandem valve Yangzhou Zhongmei Multi-tandem valve, balance valve

Manual operation 1 set on rear o the cabin

Electric control system

Operating system Electric control system and manual operation device

Electric control buttons 1 set left and right of the rear of the body (2 sets in total)

Process requirements

Interior anti-corrosion High-strength anti-corrosion paint

Welding requirements Ensure that the weld is uniform, smooth, solid and reliable, no cracks, slag inclusion, welding penetration, welding leakage phenomenon, prevent water leakage

Spray painting requires Pre-paint treatment: mechanical sand blasting for rust removal before spray painting Using two-component paint, the total thickness of the paint film reaches 80μm, two primers + two topcoats

Other requirements

Protection device Guard railing installed on both sides and rear of the box; -- Removable side protection, material: Q235B carbon steel

Side protection: Section height ≥100mm, bottom edge height ≤550mm, material: Q235B carbon steel

Rear protection: special device for rear flip over

Rear fender: Metal fender, material: Q235B carbon steel

Lamps and sign Side lights: two side sign lights are installed on the lower edge of the single side of the box, and the lamp wiring harness is sealed and fixed, and shall not be exposed

Reflective strip: Pasted on the side and back of the box, composed of red and white identification, reflective strip should be able to reflect the width and length of the container, and in line with the territorial national standard ----3M reflective identification

Other description The vehicle is equipped with operating instructions and a list of wearing parts in Chinese and English. The vehicle is weighed and recorded after storage. The vehicle must not reflect the manufacturer's logo

Compress parameter

Garbage density after compression 0.5-0.8t/m³

Loading operation time for once Less than 30 seconds

Unloading operation time for once Less than 36 seconds

Compression ratio More than 1:2.5
