No.

Model

Rated loading capacity(kg)

Engine rated power

Unit price
 FOB China main port in USD

1

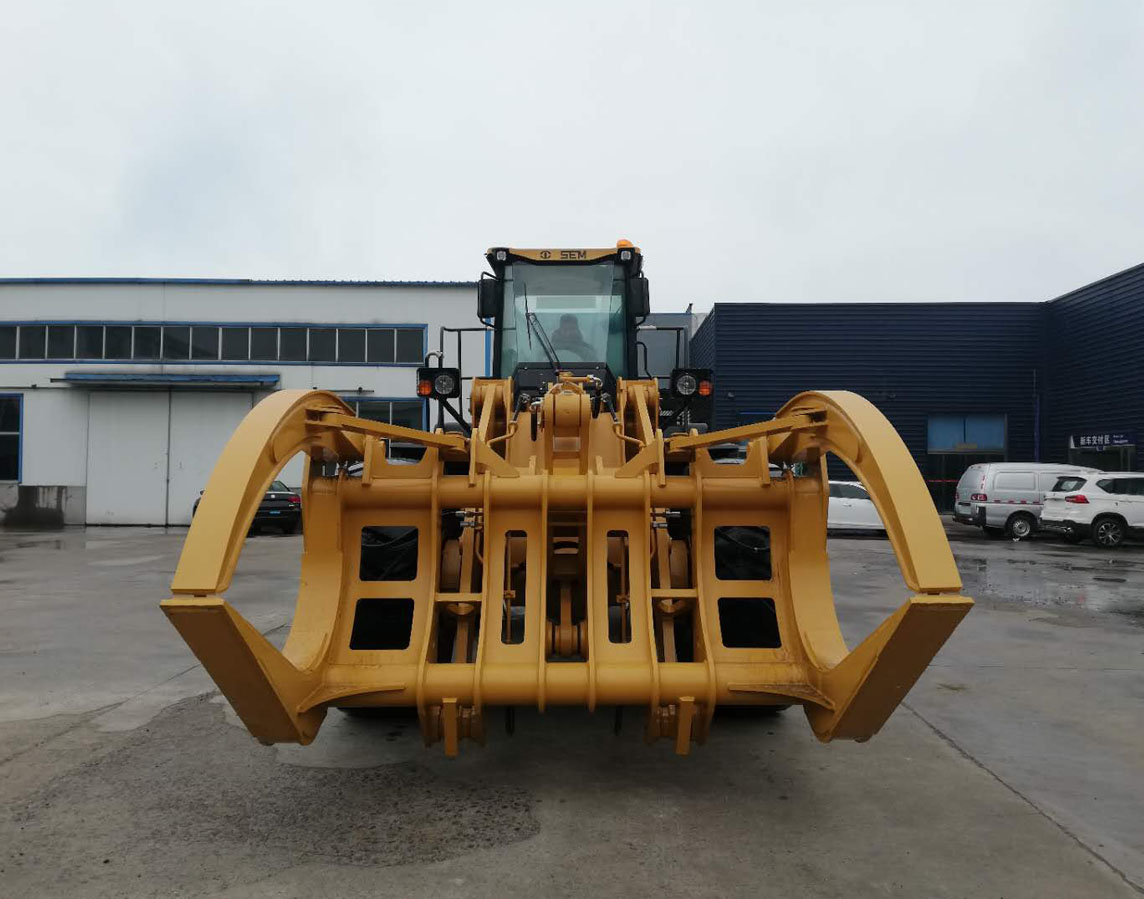

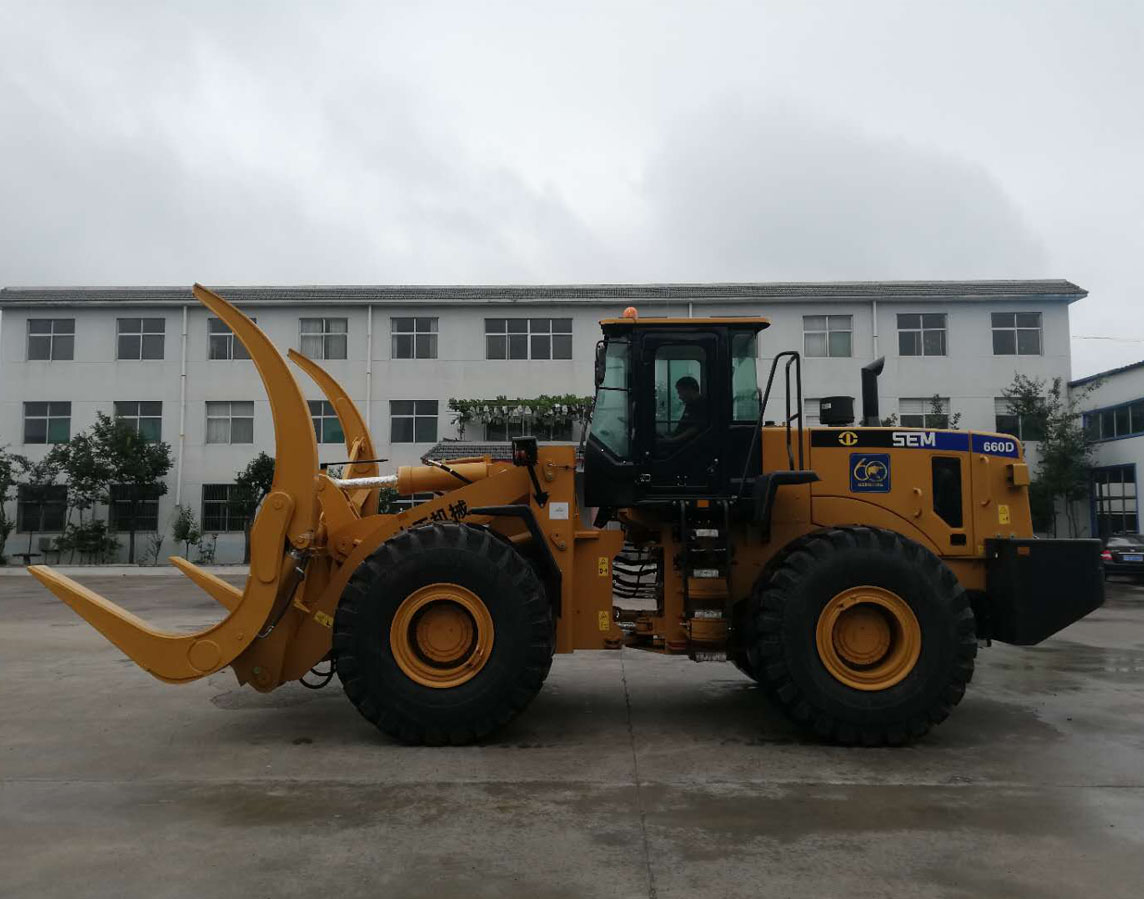

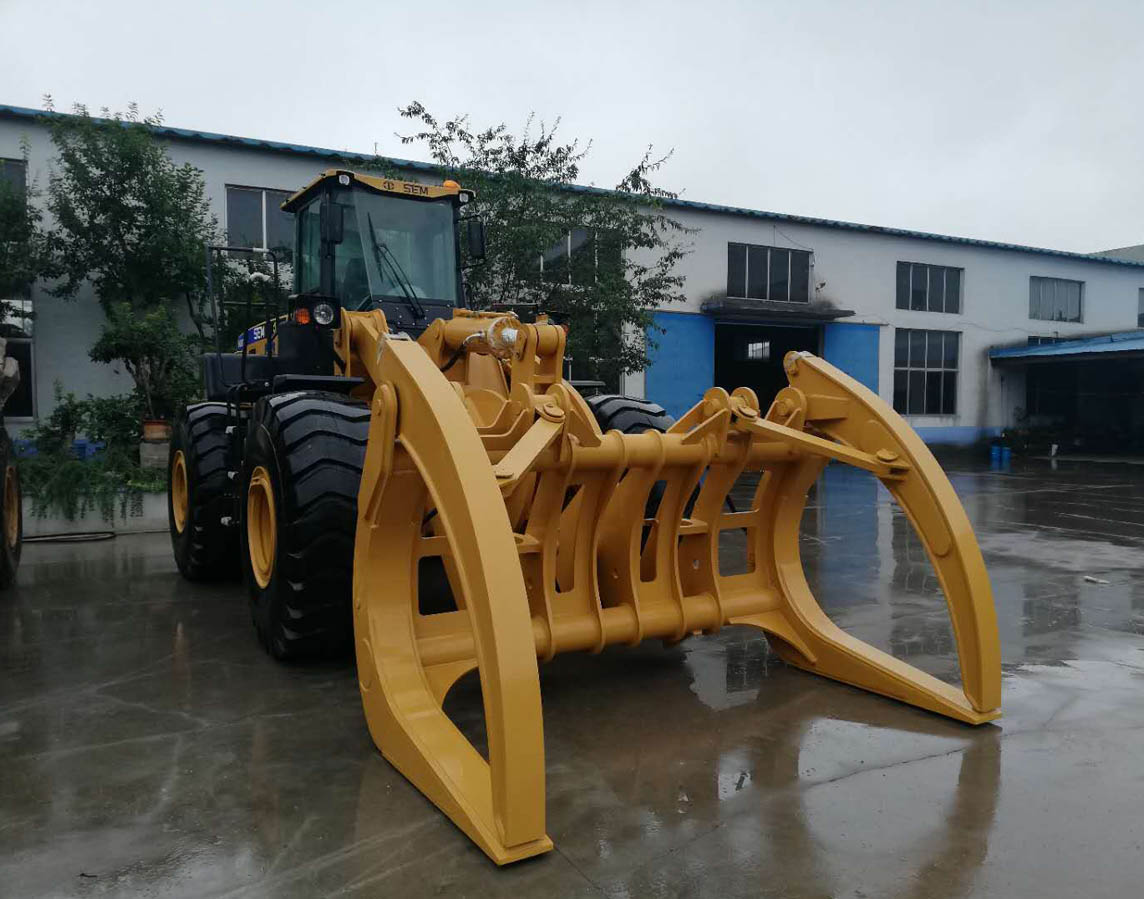

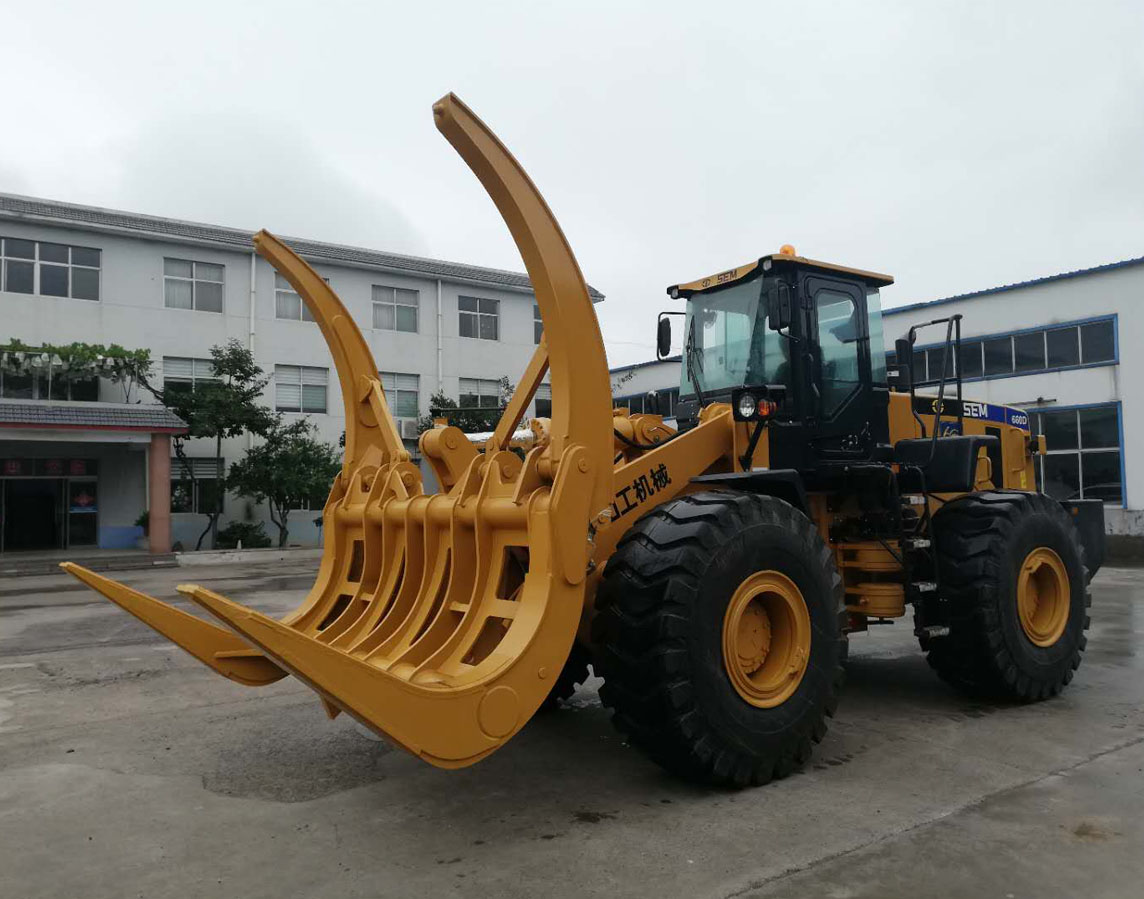

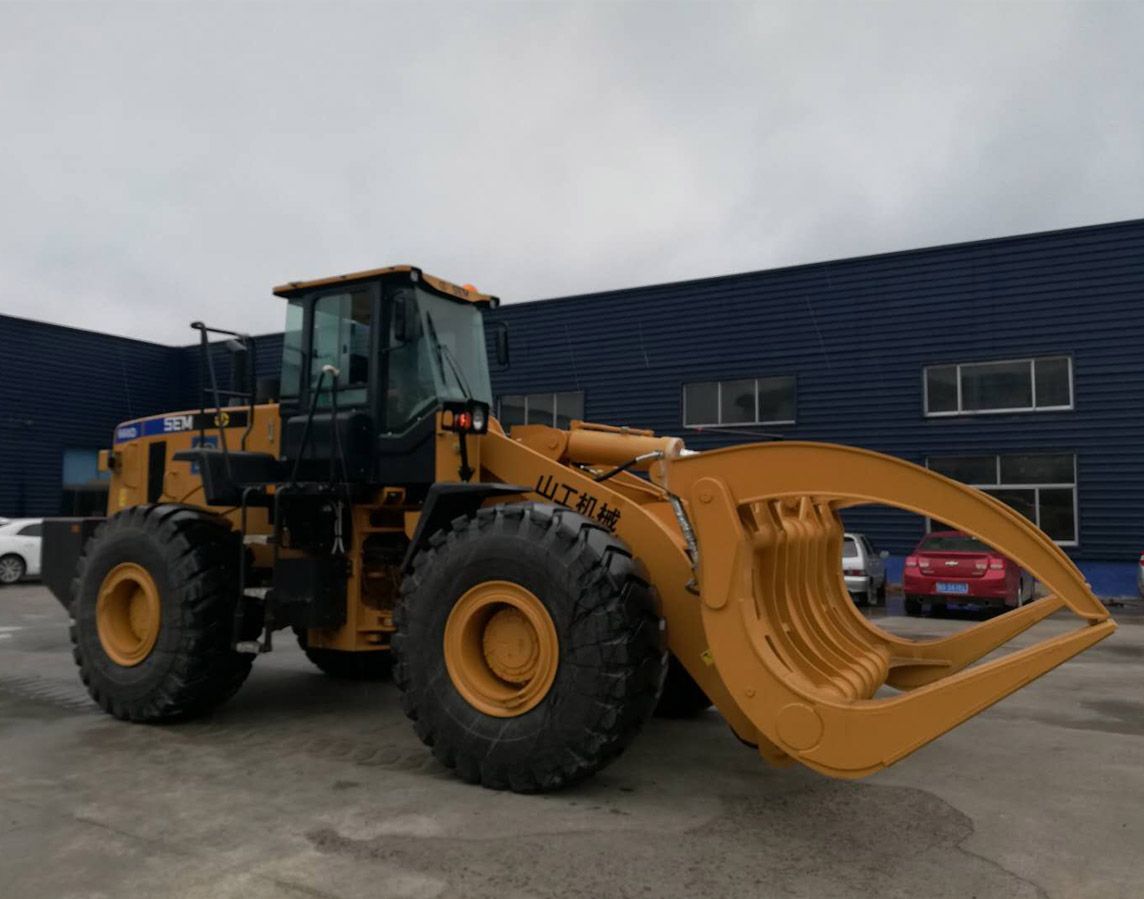

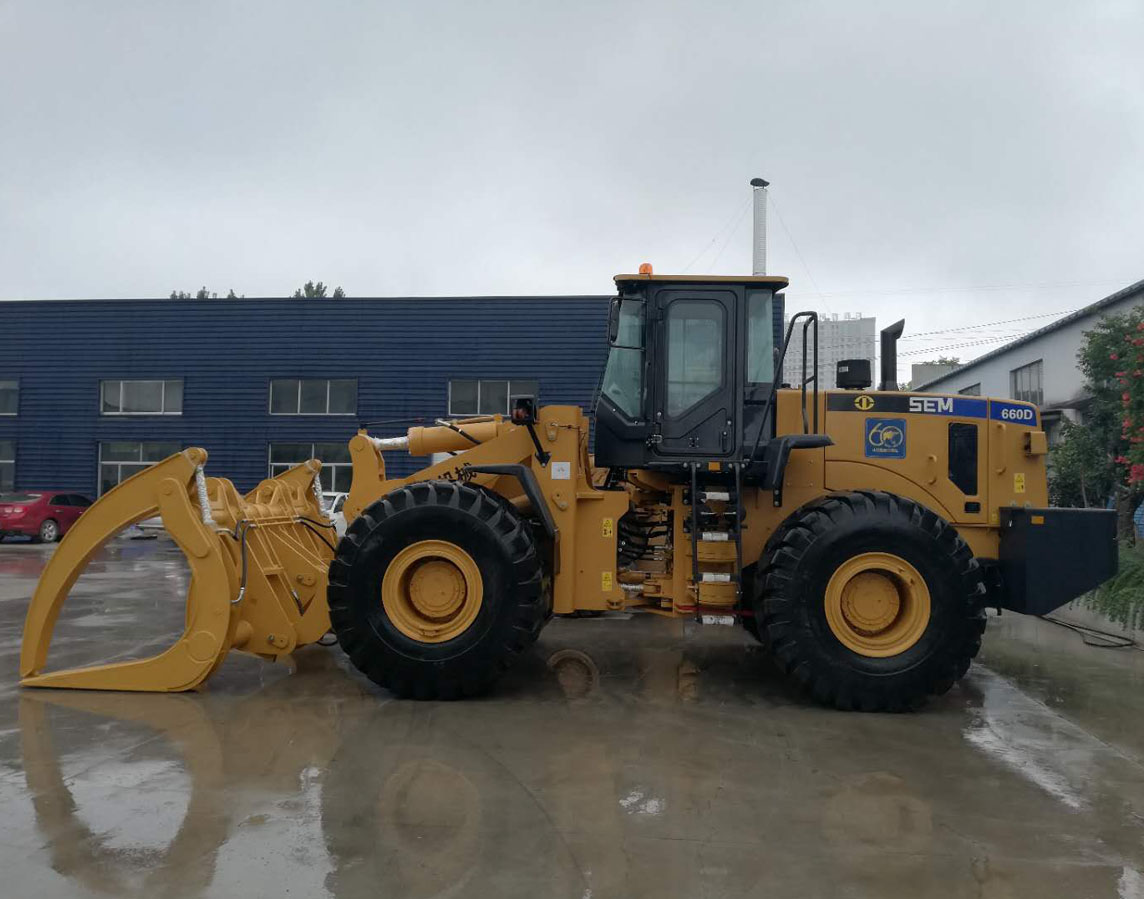

SEM660D

6000

178kw

MAIN SPECIFICATIONS

Max.drawing pull

188KN

Tire

 26.5-25

Max. breakout force

204KN

Low pressure, wide base, bias

Max.Turing radius（outside of bucket）

7075mm

Engine

WP10G240E343
EURO 3

Wheel Base

3350mm

Rotating Speed 2000 r/min
Rated Power: 178kw

Dumping Height

3107 mm

Transmission

Model：TR200

Dumping Reach

1232mm

CQL countershaft powershift

Steering System

 Coaxial Flow Amplifying Steering

Torque converter： Single-stag three-element，centripetal

angle：（left/right）   38°±1

Working Pressure：18MPa

 Gearshift:4 forwards,4 reverse

Brake system

servise brake :single circuit,air-over-oil 4-wheel caliper disc brake

Working Hydraulic System

fixed，viarable，combined & divided dual-pump

Boom lifting time：5.3s

parking&emergency brake:pneumatic internal expanding shoe brake

Equipment total working time：9.7s(lifting, unloading, desecending)

pressure：18Mpa

Overall Dimension（mm）

8541x3092x3458
