The HW10-3 is designed with a new philosophy of faster speed, higher efficiency, greater energy saving, more environmental protection, and greater user-friendliness. It features a comprehensive upgrade in configuration and more thoughtful details. When used with various accessories, it can achieve multiple uses and is suitable for various work scenarios, especially in confined spaces, where it can perform exceptionally well. It is particularly suitable for small-scale operations such as orchard ditch digging, pipeline laying, and municipal construction.

Machine detailed parameters

Total Weight 860 kG

Awning weight 32 kG

Engine Changchai/ Koop

Emission Standards Naitonal II/ Euro V

Engine model 192FA

Engine power 8.2/7.6 kW

Fuel tank volume 7 L

Main pump displacement 6.5 mL/r

Hydraulic oil tank volume 18 L

Work pressure 16 MPa

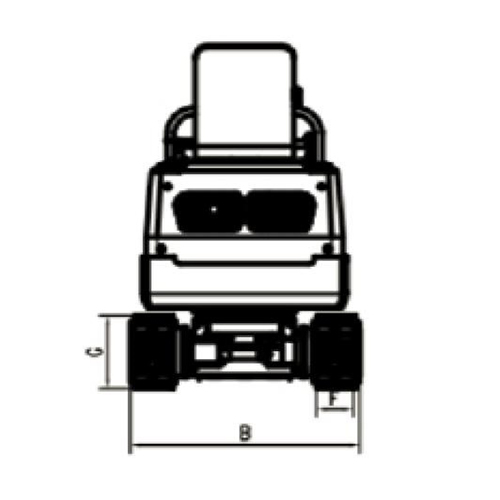

Total width 930 mm

Total height/including awning 1470/2160 mm

Minimum ground clearance 120 mm

Platform ground clearance 370 mm

Track width 180 mm

Track height 320 mm

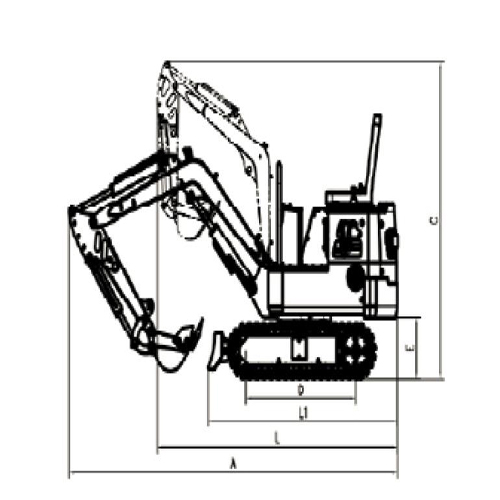

Shipping length (minimum length) 2200 mm

Bulldozer blade maximum lifting height 140 mm

Bulldozing Blade Maximum Clearing Depth 270 mm

Maximum Digging Height 2620 mm

Maximum dump height 1900 mm

Maximum Digging Depth 1675 mm

Maximum Digging Radius 2960 mm

Stick Digging Force 4 kN

Bucket Digging Force 6 kN

Maximum Digging Force 7 kN

Bucket capacity 0.025 m³

Walking speed 2.0 km/h
