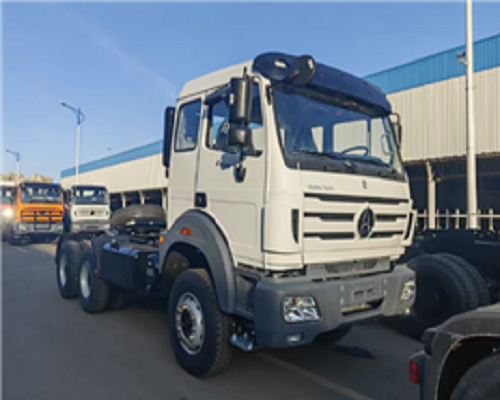

2638SZ 6X4 PRIME MOVER RHD

Wheel base：3450+1450mm

Cabin：NG80B long cabin flat top with single sleeper

Cabin with air conditioning, sun shield

Steering：RHD 8098

Engine：WP10.380E32 China III 380hp

Transmission：12JS200T 12 forward，2 reverse，with synchronizer

Front axle 7.5T, mid and rear 13+13T Speed ratio 5.263

Frame：317×70×8.5+7+12mm

Fuel tank 400L Iron

Tires 12.00R24、JOSTφ90 one-way saddle

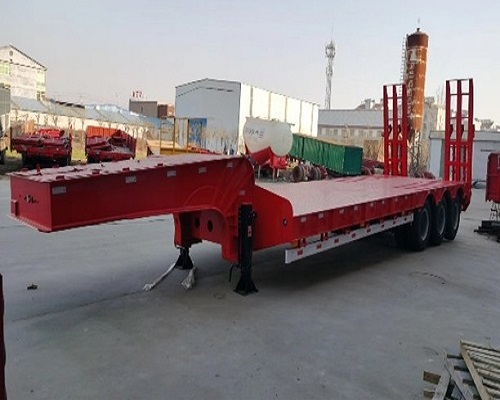

CBZ9400TDP LOW BED SEMI TRAILER

Size 13000×3000×3300mm

Self-weight 1000000KG

Load capacity 40000 KG

Bottom plate 4mm pattern

Axle Shandong Fuhua 13T*3, 3axle wheel base 2180

Suspension system Three axle series mechanical suspension - reverse mounted suspension

Tire and Rim Factory rim, tires: 10.00R20 13pcs

Plate spring 10 pieces *90*13mm 6 sets

Brake system Dual line braking system

Main beam material: Q345B

Main beam height: 500mm

Upper wing plate thickness: 20mm

Lower wing plate thickness: 20mm

Vertical plate thickness: 10mm

Side beam H - beam high strength group

Ladder Spring Mechanical ladder

Traction pin 90# and 50# interchanged

Outrigger Yahua single action external

Spare tire rack 1

Brake system Air chamber T30/30, three 40L gas barrels

Electrical system 7 hole plug, 24 V waterproof circuit

Painting Chassis sand blasting rust removal, 1 layer of anti-corrosion paint, 2 layers of final paint
